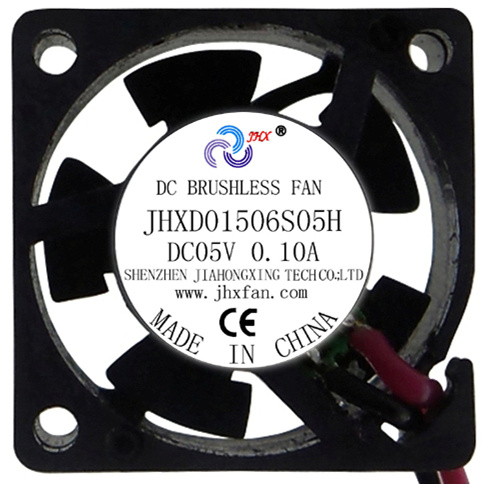

散熱風(fēng)扇 1506
1506 尺寸/Size 15X16X06mm DC AxialFlowFan
★Dimensions Drawing(外觀(guān)圖) ★Characteristic Curves(特性曲線(xiàn))
★Specifications(規格 |
|||||||||
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓(V) |
Operation Voltage 電壓范圍 |
Current
電流(A) |
Iuput Power 功率(W) |
Speed 轉速 (RPM) |
AirFlow 風(fēng)量 (CFM) |
Static Pressure 靜壓(mm-H2O) |
Niose Level 噪音(dB-A) |
JHX1506S33M |
Sleeve |
3.3 |
3~3.6 |
0.09 |
0.297 |
10000 |
0.32 |
0.96 |
18.75 |
JHX1506S33L |
0.06 |
0.198 |
8000 |
0.23 |
0.61 |
18.63 |
|||
JHX1506S05H |
Sleeve |
5 |
4.5~5.5 |
0.08 |
0.4 |
13000 |
0.43 |
1.6 |
19.63 |
JHX1506S05M |
0.07 |
0.35 |
10000 |
0.32 |
0.96 |
18.75 |
|||
JHX1506S05L |
0.06 |
0.3 |
8000 |
0.23 |
0.61 |
18.63 |
