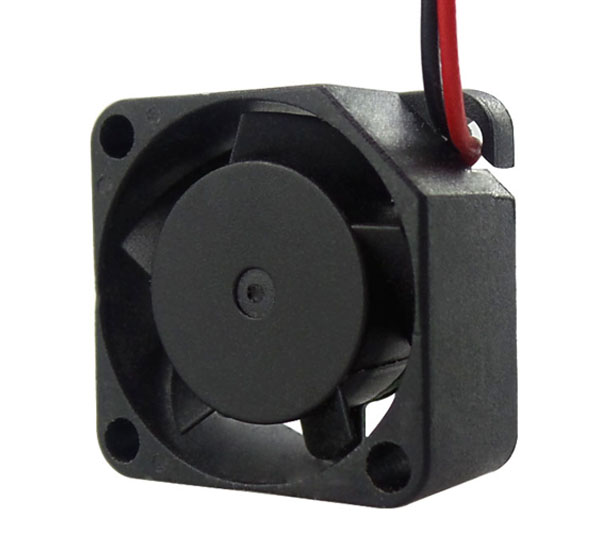

直流風(fēng)扇 JHX2010
2010 尺寸/Size 20X20X10mm DC AxialFlowFan
★Dimensions Drawing(外觀(guān)圖） ★Characteristic Curves(特性曲線(xiàn))
|
★Specifications（規格 |
|||||||||
|
Model 型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current 電流（A) |
Iuput Power 功率（W) |
Speed 轉速 （RPM) |
AirFlow 風(fēng)量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Niose Level 噪音（dB-A） |
|
JHX2010S05H |
Sleeve |
5 |
4.5～5.5 |
0.20 |
1.0 |
18000 |
1.89 |
7.23 |
23.28 |
|
JHX2010S05M |
0.15 |
0.75 |
12000 |
1.27 |
3.93 |
27.13 |
|||
|
JHX2010S05L |
0.10 |
0.5 |
9000 |
0.85 |
2.32 |
20.55 |
|||
|
JHX2010S12H |
Sleeve |
12 |
10.8～13.2 |
0.15 |
1.8 |
18000 |
1.89 |
7.23 |
37.28 |
|
JHX2010S12M |
0.10 |
1.2 |
12000 |
1.27 |
3.93 |
21.13 |
|||
|
JHX2010S12L |
0.07 |
0.87 |
9000 |
0.85 |
2.32 |
20.55 |
|||
