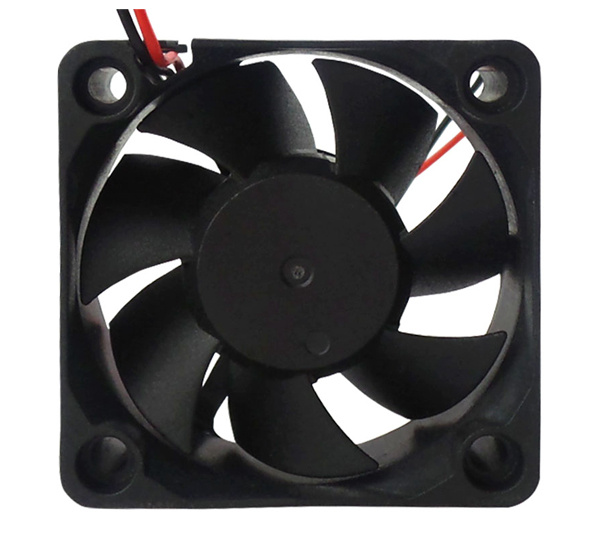

直流風(fēng)扇 JHX5020
5020 尺寸/Size 50X50X20mm DC AxialFlowFan

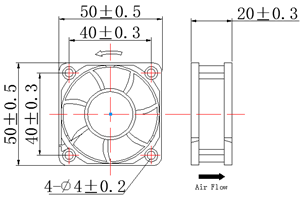

★Dimensions Drawing(外觀(guān)圖） ★Characteristic Curves(特性曲線(xiàn))
|
★Specifications（規格 |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Iuput Power 功率（W) |
Speed 轉速 （RPM) |
AirFlow 風(fēng)量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Niose Level 噪音（dB-A） |
|
JHX5020X05H |
Sleeve Ball |
5 |
4.5～5.5 |
0.40 |
2.00 |
5800 |
16.67 |
6.59 |
34.3 |
|
JHX5020X05M |
0.22 |
1.10 |
4800 |
14.36 |
4.39 |
28.7 |
|||
|
JHX5020X12L |
0.18 |
0.90 |
4000 |
11.22 |
2.84 |
26.9 |
|||
|
JHX5020X12HH |
Sleeve Ball |
12 |
10.8～13.2 |
0.28 |
3.36 |
6500 |
18.68 |
8.20 |
39.2 |
|
JHX5020X12H |
0.22 |
2.64 |
5800 |
16.67 |
6.59 |
34.3 |
|||
|
JHX5020X12M |
0.19 |
2.28 |
4800 |
14.36 |
4.39 |
28.7 |
|||
|
JHX5020X12L |
0.11 |
1.32 |
4000 |
11.22 |
2.84 |
26.9 |
|||
|
JHX5020X24VH |
Sleeve Ball |
24 |
18.0～26.5 |
0.18 |
4.32 |
6500 |
18.68 |
8.20 |
39.2 |
|
JHX5020X24HH |
0.11 |
2.64 |
5800 |
16.67 |
6.59 |
34.3 |
|||
|
JHX5020X24M |
0.10 |
2.40 |
4800 |
14.36 |
4.39 |
28.7 |
|||
|
JHX5020X24L |
0.07 |
1.68 |
4000 |
11.22 |
2.84 |
26.9 |
|||
